    GoldenClad® Casement Window

  • These windows open completely, allowing you to direct natural airflow into your home. They also feature a multi-point locking system, which allows one locking point to control multiple locks on the window for additional security. When this system is combined with roto-operators, it provides an unbelievable ease of operation.

    • Select from 4 available colours: white, black, sable, taupe
    • 30 Optional and custom colours available
    • Available in dual and triple glaze
    • 3 standard and 2 optional hardware finishes to choose from
    • Multiple grille options including grilles between the glass, removable wood grilles and simulated divided lights (SDL)
    • Choose from Colonial, Victorian, Muskoka and Custom Grille Patterns
    • Exterior Brickmould and sill nosing are available
    • White, Black, Coppertone or wood grain screens available

    The GoldenClad® fixed and operating casements are available in a wide range of standard and custom sizes that will meet most new construction and renovation requirements

    This product is also available in the GoldenWood® and GoldenVinyl® product lines.

Colour Options

Available Exterior Colours

Golden White

Golden White

Taupe

Taupe

golden sable

Golden Sable

black

Black

Optional Exterior Colours

cranberry

Cranberry

green

Green

Tavern Green

Eagle Tavern Green

Cashmere

Cashmere

Wicker

Wicker

tile red

Tile Red

burgundy

Burgundy

sandalwood

Sandalwood

clay

Clay

buff

Buff

Old World Blue

Old World Blue

Wedgewood

Wedgewood

Ivy Green

Ivy Green

backwood

Backwood

leaf green

Leaf Green

amazon green

Amazon Green

forest green

Forest Green

grey

Grey

sable

Sable

white

White

Plum Black

Plum Black

universal brown

Universal Brown

Bronze

Bronze

Almond

Almond

Dove Grey

Dove Grey

Iron Ore

Iron Ore

Pearl Grey

Pearl Grey

Commercial Brown

Commercial Brown

Slate

Slate

Cream

Cream

Custom Colours are also available.

Individual computer and monitor settings may prevent the exact matches of colour finish. Please contact Golden Windows for exact colour and finish samples.

Glass Options

Low E Options

low e glass

Clear | Hard Coat Low E (3) - CLLE

This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.

Soft Coat Low E (2) | Clear – SBCL

The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.

Hard Coat Low E (2) | Hard Coat Low E (4) - LELE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%.  During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.

Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%.  During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.

Glass Spacer Options

Warm Edge Technology

Golden Windows uses only Warm Edge Technology (W.E.T) spacers in their windows.  Warm Edge Technology is a generic term for any spacer bar or system that has better thermal performance than a highly conductive aluminum spacer bar. The two W.E.T spacers that Golden Windows uses are the tin Intercept spacer and the Edgetech Superspacer.

Intercept®

The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.

interceptor

Superspacer®

The Superspacer helps to deliver windows of the highest standards. Superspacer is a non-metal structural foam spacer system that holds panes of glass apart in a window.  Superspacer has excellent resistance to nitrogen and argon gas absorption and it has high UV resistance. It has 100% memory meaning it will return to its original shape allowing for expansion and contraction, which is a major cause of stress fractures in conventional sealed units.

superspacer

Decorative Glass Options

obscure

Obscure



Grille Options

Grille Patterns

colonial

Colonial

muskoka

Muskoka

victorian

Victorian

horizontal

2" Horizontal

custom

Custom

Grilles Between Glass (GBG)

pewter

5/16" Narrow Pewter

brass

5/16" Narrow Brass

flat

5/8" Standard Flat

georgian

3/4" Georgian

5/8" Standard Flat & 3/4" Georgian available in:

golden white

Golden White

taupe

Taupe

golden sable

Golden Sable

black

Black

Split finish also available in 5/8" Standard Flat & 3/4" Georgian.

Simulated Divided Lite (SDL)

exterior SDL

1" Exterior SDL

exterior mullion

2" Exterior Mullion

interior sdl

1" Interior SDL

mullion

2" Interior Mullion

Wood Removable

removable profile

1" Removable Profile

Available in:

pine

Pine

Hardware Options

Standard Hardware Finishes

white

White

coppertone

Coppertone

black

Black

Optional Hardware Finishes

oil rubbed bronze

Oil Rubbed Bronze

brushed nickel

Brushed Nickel

GoldenClad-Hardware-AB

Antique Brass

Optional Accessories

Exterior Brickmould

Standard Brickmould1 1/2" Standard Brickmould

Screens

Available in white, black, coppertone and wood grain.

Sizes & Shapes

Fixed or Operating Units

pdf icon Goldenclad Casement Sizing Chart

 Goldenclad Casement Sizing Chart

Egress Notes:

Ec = Window meets the 2006 Ontario Building Code where each such window shall provide an individual, unobstructed open portion having a minimum area of 3.85ft2 (0.35m2) with no dimensions less than 380mm (15”).

E1 = Window has an individual, unobstructed open portion of no less than 20” (508mm) in width, 24” (610mm) in height and a minimum area of 5.0ft2 (0.46m2).

E2 = Window has an individual, unobstructed open portion of no less than 20” (508mm) in width, 24” (610mm) in height and a minimum area of 5.7ft2 (0.53m2).

* = Window will meet that egress requirement when the optional Egress Hinge is ordered on the window (Egress Hinge will restrict the sash opening to approximately 85º).

Ø = Non operable, a special quote is required to determine whether the sash will operate with limiting device.

Additional fixed units availabe, please contact Golden Windows for sizing.

Performance

Physical Performance

Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2016 Ontario Building Code.

Clad/Wood Casement Window (Operating)
Class CW-PG40: Size tested 900 x 1950 mm (35.4 x 76.8)-Type C
Positive Design Pressure = 2130 Pa (44 psf)
Negative Design Pressure = -2130 Pa (-44 psf)
Water Penetration Resistance Test Pressure = 400 Pa (8 psf)
Canadian Air Infiltration/Exfiltration = A3 Level

Clad/Wood Casement Window (Fixed)
Class CW-PG35: Size tested 2000 x 2000 mm (78.7 x 78.7)-Type FW
Positive Design Pressure = 1760 Pa (37 psf)
Negative Design Pressure = -1760 Pa (-37 psf)
Water Penetration Resistance Test Pressure = 730 Pa (15 psf)
Canadian Air Infiltration/Exfiltration = Fixed Level

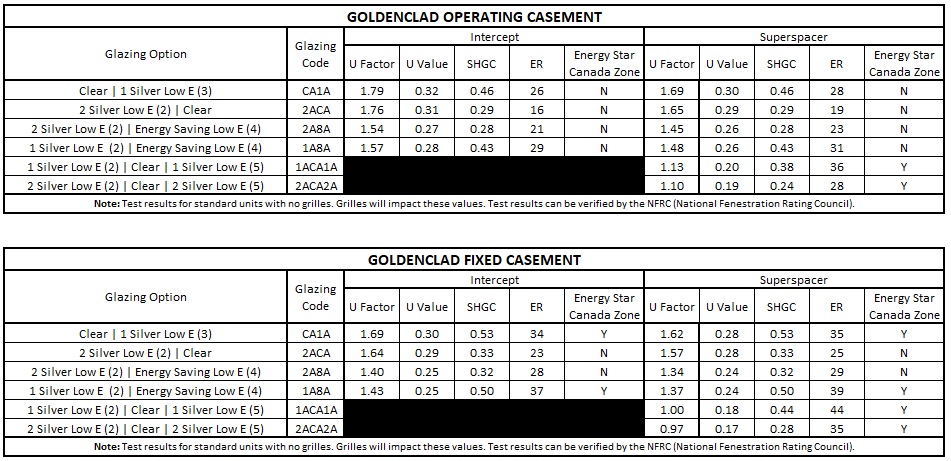

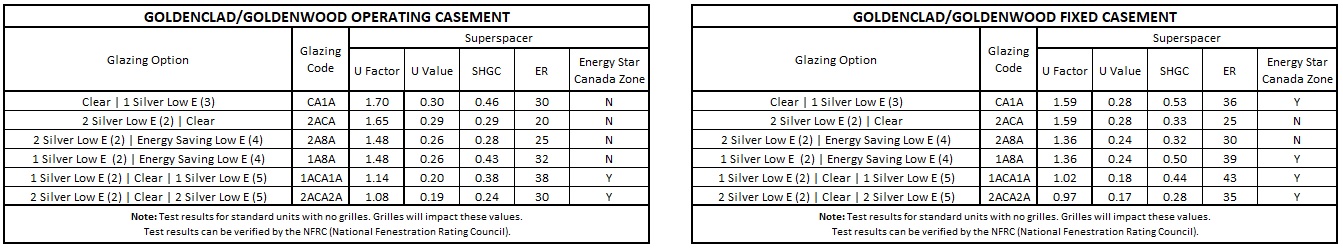

Thermal Performance

   2022-GoldenClad-Casement-Performance-Data-August

Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances,
building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.

For Professionals

Vertical Section

vertical

Horizontal Section

horizontal

Drawings are not to scale.
