The Goldenvinyl® picture and transom windows are fixed windows designed to align with awnings, casement, sliding and single and double hung windows. They have no operating hardware and offer a wide, bright view of the outdoors. They are constructed with the similar sash from our casement windows and allow homeowners to take advantage of the outdoors from the comfort of their home.
- Standard White exterior colour with 3 upgraded exterior colours to select from.
- 28 Optional and custom colours available
- 4 diffferent Low E Options, all include Argon gas
- Multiple grille options including grilles between the glass and simulated divided lights (SDL)
- Choose from Colonial, Victorian, Muskoka or Custom Grille Patterns
- Exterior Brickmould and sill nosing are available
GoldenVinyl® 5000 Series Architectural & Picture windows are available in a wide range of standard and custom sizes that will meet most new construction and renovation requirements.
This product is also available in the GoldenClad®, GoldenWood® and GoldenVinyl® 3100 Series.THIS PRODUCT IS CURRENTLY NOT AVAILABLE.
GoldenVinyl® 5000 Series Architectural & Picture Windows-THIS PRODUCT IS NOT CURRENTLY AVAILABLE
Colour Options
Standard Exterior Colours
Golden White
Upgraded Standard Exterior Colours
Taupe
Golden Sable
Black
Optional Exterior Colours
Cranberry
Green
Tavern Green
Cashmere
Wicker
Tile Red
Burgundy
Sandalwood
Clay
Buff
Old World Blue
Wedgewood
Ivy Green
Backwood
Leaf Green
Amazon Green
Forest Green
GreySable
White
Universal Brown
Bronze
Almond
Glass Options
Low E Options
Clear | Hard Coat Low E (3) - CLLE
This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.
Soft Coat Low E (2) | Clear – SBCL
The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.
Hard Coat Low E (2) | Hard Coat Low E (4) - LELE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.
Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.
Glass Spacer Options
Warm Edge Technology
Intercept®
The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.
Superspacer®
Decorative Glass Options
Obscure
Grille Options
Grille Patterns
Colonial
Muskoka
Victorian
2" Horizontal
Custom
Grilles Between Glass (GBG)
5/16" Narrow Pewter
5/16" Narrow Brass
5/8" Standard Flat
3/4" Georgian
5/8" Standard Flat & 3/4" Georgian available in:
Golden White
Taupe
Golden Sable
Black
Split finish also available in 5/8" Standard Flat & 3/4" Georgian.
Simulated Divided Lite (SDL)
1" Exterior SDL
1" White Interior SDL
Optional Accessories
Exterior Brickmould
Flanged Brick Mould
Standard Brick Mould
Installation Accessories
Masonry Clip
Installation Bracket
Performance
Physical Perfromance
Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2012 Ontario Building Code.
Thermal Performance
|
GoldenVinyl 5000 Series Architectural & Picture Windows with Intercept Spacer |
|||||
|
Glazing Option - Code |
U Value |
U Factor |
SHGC |
ER Rating |
Energy Star Canada Qualification Zone |
|
Clear | Hard Coat Low E (3)-CLLE |
1.76 |
0.31 |
0.64 |
38 |
1 | 2 | 3 |
|
Soft Coat Low E (2) | Clear-SBCL |
1.59 |
0.28 |
0.34 |
25 |
1 |
|
GoldenVinyl 5000 Architectural & Picture Windows with Super Spacer |
|||||
|
Clear | Hard Coat Low E (3)-CLLE |
1.70 |
0.30 |
0.64 |
40 |
1 | 2 | 3 |
|
Soft Coat Low E (2) | Clear-SBCL |
1.48 |
0.26 |
0.34 |
27 |
1 |
|
Hard Coat Low E (2) | Hard Coat Low E (4)-LELE |
1.36 |
0.24 |
0.52 |
40 |
1 | 2 | 3 |
|
Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE |
1.25 |
0.22 |
0.32 |
31 |
1 | 2 |
|
Note: Test results for standard units with no grilles. Grilles will have an impact on these values. Test results can be verified by the NRFC (National Fenestration Rating Council). |
|||||
Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances,
building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.
For Professionals
Vertical Section

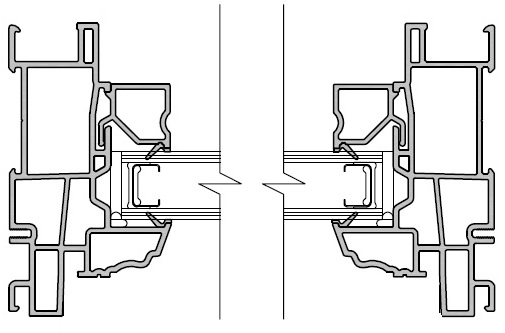

Horizontial Section
Drawings are not to scale.
