GoldenClad® Sliding Patio Doors

Our complete line of GoldenClad^® Sliding Patio Doors offer the warmth and elegance of traditional wood doors on the interior of your home with the added luxury and protection of colour matched aluminum cladding on the exterior. An extruded layer of aluminum cladding encases the exterior, protecting the engineered wood core and keeping it free from deterioration.

The GoldenClad^® Sliding Patio Door is available in both a Traditional (Wide French Style) and a Contemporary (Narrow Rail) design.

Colour Options

Standard Exterior Frame Colours

Golden White

Taupe

Golden Sable

Green

Cranberry

Black

Optional Exterior Frame Colours

Tavern Green

Cashmere

Wicker

Tile Red

Burgundy

Sandalwood

Clay

Buff

Old World Blue

Wedgewood

Ivy Green

Backwood

Leaf Green

Amazon Green

Forest Green

Grey

Sable

White

Universal Brown

Bronze

Almond

Custom Colours are also available.

Individual computer and monitor settings may prevent the exact matches of colour finish. Please contact Golden Windows for exact colour and finish samples.

Glass Options

Low E Options

Clear | Hard Coat Low E (3) - CTLT*

This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.

Soft Coat Low E (2) | Clear – STCT*

The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.

Hard Coat Low E (2) | Hard Coat Low E (4) - LTLT*

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.

Soft Coat Low E (2) | Hard Coat Low E (4) - STLT*

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.

*T denotes "fully tempered" glass

Glass Spacer

Warm Edge Technology

Golden Windows uses only Warm Edge Technology (W.E.T) spacers in their windows. Warm Edge Technology is a generic term for any spacer bar or system that has better thermal performance than a highly conductive aluminum spacer bar. The two W.E.T spacers that Golden Windows uses are the tin Intercept spacer and the Edgetech Superspacer.

Superspacer®

The Superspacer helps to deliver windows of the highest standards. Superspacer is a non-metal structural foam spacer system that holds panes of glass apart in a window. Superspacer has excellent resistance to nitrogen and argon gas absorption and it has high UV resistance. It has 100% memory meaning it will return to its original shape allowing for expansion and contraction, which is a major cause of stress fractures in conventional sealed units.

Decorative Glass Options

Obscure

Grille Options

Grille Patterns

Colonial

Muskoka

Victorian

2" Horizontal

Custom

Grilles Between Glass (GBG)

5/16" Narrow Pewter

5/16" Narrow Brass

5/8" Standard Flat

3/4" Georgian

5/8" Standard Flat & 3/4" Georgian available in:

Golden White

Taupe

Golden Sable

Black

Split finish also available in 5/8" Standard Flat & 3/4" Georgian.

Simulated Divided Lite (SDL)

1" Exterior SDL

2" Exterior Mullion

1" Interior SDL

2" Interior Mullion

Wood Removable

1" Removable Profile

Available in:

Pine

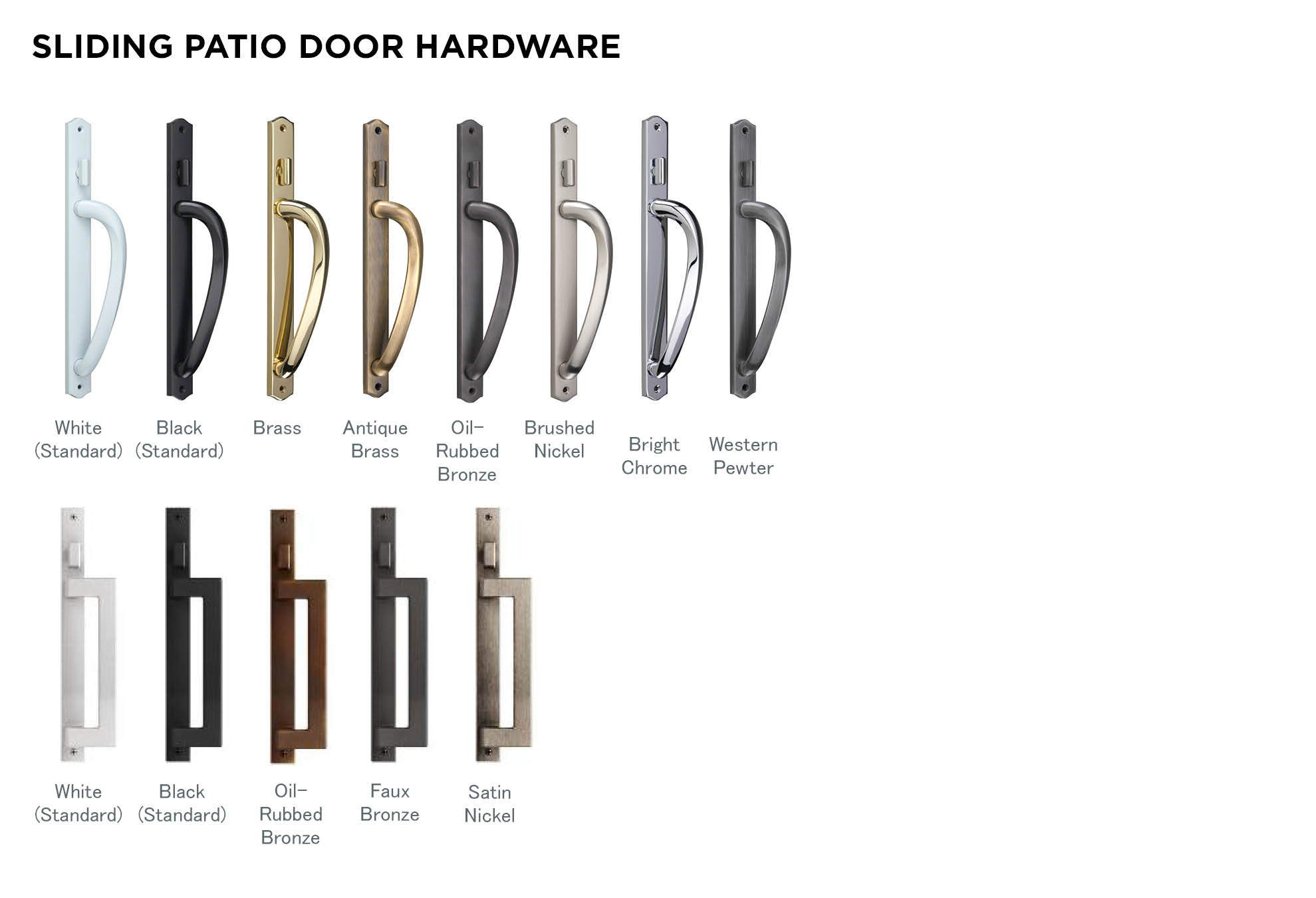

Hardware Options

White

Black

Brass

Antique Brass

Oil Rubbed Bronze

Brushed Nickel

Bright Chrome

Western Pewter

Optional Accessories

Exterior Brickmould

1 1/2" Standard Brickmould

Security Options

Optional Footbolt

Optional Security Bar

Sizes & Shapes

Contemporary Sliding Patio Door

Traditional Sliding Patio Door

“R” Denotes the sliding panel, as viewed from the exterior of the door. All “RF” doors shown are also available as “FR” doors.

Performance

Physical Performance

Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian
Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2012 Ontario Building Code.

Clad/Wood Sliding Patio Door
Class LC-PG30: Size tested 2412 x 2423 mm (94.96 x 95.39)-Type SD
Positive Design Pressure = 1440 Pa (30 psf)
Negative Design Pressure = -1440 Pa (-30 psf)
Water Penetration Resistance Test Pressure = 400 Pa (8 psf)
Canadian Air Infiltration/Exfiltration = A3 Level

Clad/Wood Sliding Patio Door Sidelite
Positive Design Pressure = 1440 Pa (30 psf)
Negative Design Pressure = -1440 Pa (-30 psf)
Water Penetration Resistance Test Pressure = 510 Pa (11 psf)
Canadian Air Infiltration/Exfiltration = A3 Level

Thermal Performance

GoldenClad Contemporary Sliding Patio Door with Super Spacer
Glazing Option - Code	U Value	U Factor	SHGC	ER Rating	Energy Star Canada Qualification Zone
Clear \| Hard Coat Low E (3)-CTLT	1.87	0.33	0.57	31	1 \| 2
Soft Coat Low E (2) \| Clear-STCT	1.70	0.30	0.30	19	None
Hard Coat Low E (2) \| Hard Coat Low E (4)-LTLT	1.53	0.27	0.46	32	1 \| 2
Soft Coat Low E (2) \| Hard Coat Low E (4) - STLT	1.48	0.26	0.28	23	1
Note: Test results for standard units with no grilles. Grilles will have an impact on these values. Test results can be verified by the NRFC (National Fenestration Rating Council).

GoldenClad Traditional Sliding Patio Door with Intercept Spacer
Glazing Option - Code	U Value	U Factor	SHGC	ER Rating	Energy Star Canada Qualification Zone
Clear \| Hard Coat Low E (3)-CTLT	1.93	0.34	0.42	21	None
Soft Coat Low E (2) \| Clear-STCT	1.82	0.32	0.23	12	None
Hard Coat Low E (2) \| Hard Coat Low E (4)-LTLT	1.70	0.30	0.34	21	None
Soft Coat Low E (2) \| Hard Coat Low E (4) - STLT	1.65	0.29	0.21	15	None
Note: Test results for standard units with no grilles. Grilles will have an impact on these values. Test results can be verified by the NRFC (National Fenestration Rating Council).

Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances,
building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.

For Professionals

Contemporary Vertical Section

Contemporary Horizontal Section

Traditional Vertical Section

Head Section

Sill Section

Traditional Horizontal Section

Drawings are not to scale.
