    GoldenClad® Double Hung Window

  • The GoldenClad® Double Hung window offers versatility with a beautiful wood interior and a maintenance free, extruded aluminum-clad exterior for your home. Multiple layers of weather stripping and a sloped sill aid in water control and energy efficiency. The top and bottom sash both operate and pivot towards the interior for easy cleaning and maintenance.  This product features constant force balances that are concealed in a stationary jamb liner, a cam action lock with a security release button and thumb release latches for effortless tilting and removal of the sash.

    • Select from 6 standard, 23 optional or unlimited custom colours
    • 4 different Low E glazing options, all include Argon gas
    • 3 standard and 2 optional hardware finishes to choose from, with optional sash lifts
    • Multiple grille options including grilles between the glass, removable wood grilles and simulated divided lights (SDL)
    • Exterior Brickmould and sill nosing are available
    • Cottage style available with smaller upper sash and a larger lower sash with an optional interior wood am liner insert
    • Jamb liners available in white, grey or a split colour to match the exterior of the window

    GoldenClad® Double Hung windows are available in a wide range of standard and custom sizes that will meet most new construction and renovation requirements.


    This product is also available in the GoldenWood® and GoldenVinyl® 5000 Series.

Colour Options

Standard Exterior Frame Colours

Golden White

Golden White

taupe

Taupe

golden sable

Golden Sable

black

Black

cranberry

Cranberry

green

Green

Optional Exterior Frame Colours

Tavern Green

Tavern Green

Cashmere

Cashmere

Wicker

Wicker

tile red

Tile Red

burgundy

Burgundy

sandalwood

Sandalwood

clay

Clay

buff

Buff

Old World Blue

Old World Blue

Wedgewood

Wedgewood

Ivy Green

Ivy Green

backwood

Backwood

leaf green

Leaf Green

amazon green

Amazon Green

forest green

Forest Green

greyGrey
sable

Sable

white

White

universal brown

Universal Brown

Bronze

Bronze

Silver Metallic

Silver Metallic

Copper

Copper

Almond

Almond

Custom Colours are also available.

Individual computer and monitor settings may prevent the exact matches of colour finish. Please contact Golden Windows for exact colour and finish samples.

Glass Options

Low E Options

low e glass

Clear | Hard Coat Low E (3) - CLLE

This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.

Soft Coat Low E (2) | Clear – SBCL

The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.

Hard Coat Low E (2) | Hard Coat Low E (4) - LELE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%.  During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.

Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%.  During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.

Glass Spacer Options

Warm Edge Technology

Golden Windows uses only Warm Edge Technology (W.E.T) spacers in their windows.  Warm Edge Technology is a generic term for any spacer bar or system that has better thermal performance than a highly conductive aluminum spacer bar. The two W.E.T spacers that Golden Windows uses are the tin Intercept spacer and the Edgetech Superspacer.

Intercept®

The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.

interceptor

Superspacer®

The Superspacer helps to deliver windows of the highest standards. Superspacer is a non-metal structural foam spacer system that holds panes of glass apart in a window.  Superspacer has excellent resistance to nitrogen and argon gas absorption and it has high UV resistance. It has 100% memory meaning it will return to its original shape allowing for expansion and contraction, which is a major cause of stress fractures in conventional sealed units.

superspacer

Decorative Glass Options

obscure

Obscure



Grille Options

Grille Patterns

colonial

Colonial

muskoka

Muskoka

victorian

Victorian

custom

Custom

Grilles Between Glass (GBG)

pewter

5/16" Narrow Pewter

brass

5/16" Narrow Brass

flat

5/8" Standard Flat

georgian

3/4" Georgian

5/8" Standard Flat & 3/4" Georgian available in:

golden white

Golden White

taupe

Taupe

golden sable

Golden Sable

black

Black

Split finish also available in 5/8" Standard Flat & 3/4" Georgian.

Simulated Divided Lite (SDL)

exterior SDL

1" Exterior SDL

interior sdl

1" Interior SDL

Wood Removable

removable profile

1" Removable Profile

Available in:

pine

Pine

Hardware Options

Sash Locks

Standard Finishes

White Sash Lock Coppertone Black
White Coppertone Black

Optional Finishes

Oil Rubbed Bronze Brushed Nickel
Oil Rubbed Bronze Brushed Nickel

Optional Sash Lifts

White sash lift Coppertone Sash Lift Black Oil Rubbed Bronze Sash Lift Brushed Nickel Sash Lift
White Coppertone Black Oil Rubber Bronze Brushed Nickel

Optional Accessories

Exterior Brick Mould

standard brick mould

1 1/2" Standard Brick Mould

Sizes & Shapes

pdf icon GoldenClad Double Hung Window Standard Elevation

Clad Double Hung

Egress Notes:

Ec = Window meets the 2006 Ontario Building Code where each such window shall provide an individual, unobstructed open portion having a minimum area of 3.85ft2 (0.35m2) with no dimensions less that 380mm (15”).
E1 = Window has an individual, unobstructed open portion of no less than 20” (508mm) in width, 24” (610mm) in height and a minimum area of 5.0ft2 (0.46m2).
E2 = Window has an individual, unobstructed open portion of no less than 20” (508mm) in width, 24” (610mm) in height and a minimum area of 5.7ft2 (0.53m2).

Performance

Physical Performance

Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2012 Ontario Building Code.

Clad/Wood Double Hung Window
Class LC-PG35: Size tested 1159 x 2360 mm (45.6 x 92.9)-Type H
Positive Design Pressure = 1710 Pa (36 psf)
Negative Design Pressure = -1710 Pa (-36 psf)
Water Penetration Resistance Test Pressure = 400 Pa (8 psf)
Canadian Air Infiltration/Exfiltration = A3 Level

Clad/Wood Double Hung Fixed Picture Window
Class CW-PG35: Size tested 2000 x 2360 mm (78.7 x 92.9)-Type FW
Positive Design Pressure = 3930 Pa (82 psf)
Negative Design Pressure = -3930 Pa (-82 psf)
Water Penetration Resistance Test Pressure = 730 Pa (15 psf)
Canadian Air Infiltration/Exfiltration = Fixed Level

Clad/Wood Double Hung Transom Window
Class CW-PG35: Size tested 2318 x 2000 mm (91.3 x 78.7)-Type FW
Positive Design Pressure = 3970 Pa (83 psf)
Negative Design Pressure = -3970 Pa (-83 psf)
Water Penetration Resistance Test Pressure = 730 Pa (15 psf)
Canadian Air Infiltration/Exfiltration = Fixed Level

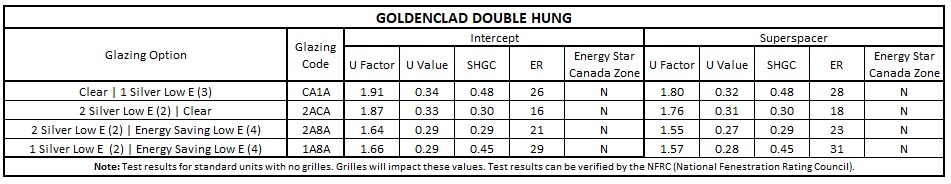

Thermal Performance



GoldenClad Double Hung with Intercept Spacer

Glazing Option - Code

U Value

U Factor

SHGC

ER Rating

Energy Star

Canada

Qualification Zone

Clear | Hard Coat Low E (3)-CLLE

1.99

0.35

0.53

26

1

Soft Coat Low E (2) | Clear-SBCL

1.82

0.32

0.28

16

None

GoldenClad Double Hung with Super Spacer

Clear | Hard Coat Low E (3)-CLLE

1.87

0.33

0.53

29

1 | 2

Soft Coat Low E (2) | Clear-SBCL

1.70

0.30

0.28

18

None

Hard Coat Low E (2) | Hard Coat Low E (4)-LELE

1.65

0.29

0.43

28

1

Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE

1.53

0.27

0.27

21

1

Note: Test results for standard units with no grilles.  Grilles will have an impact on these values.  Test results can be verified by the NRFC (National Fenestration Rating Council).

Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances,
building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.

For Professionals

Vertical Section

vertical

Horizontal Section

horizontal

Drawings are not to scale.
