    GoldenClad® Entry Systems

  • The GoldenClad® Entry System is manufactured in Kitchener and shipped across Ontario. They are designed with the GoldenGuard® sill that eliminates the need for unsightly door sweeps while incorporating an efficient drainage system. The GoldenClad® Entry System is designed with a maintenance-free aluminum clad frame. We offer a selection of steel and fiberglass panel designs to reflect your personal taste, lifestyle and the architectural style of your home. For more information, please visit our Masonite and Trimlite brochures.



Colour Options

Custom-Colours

Door Panel Options

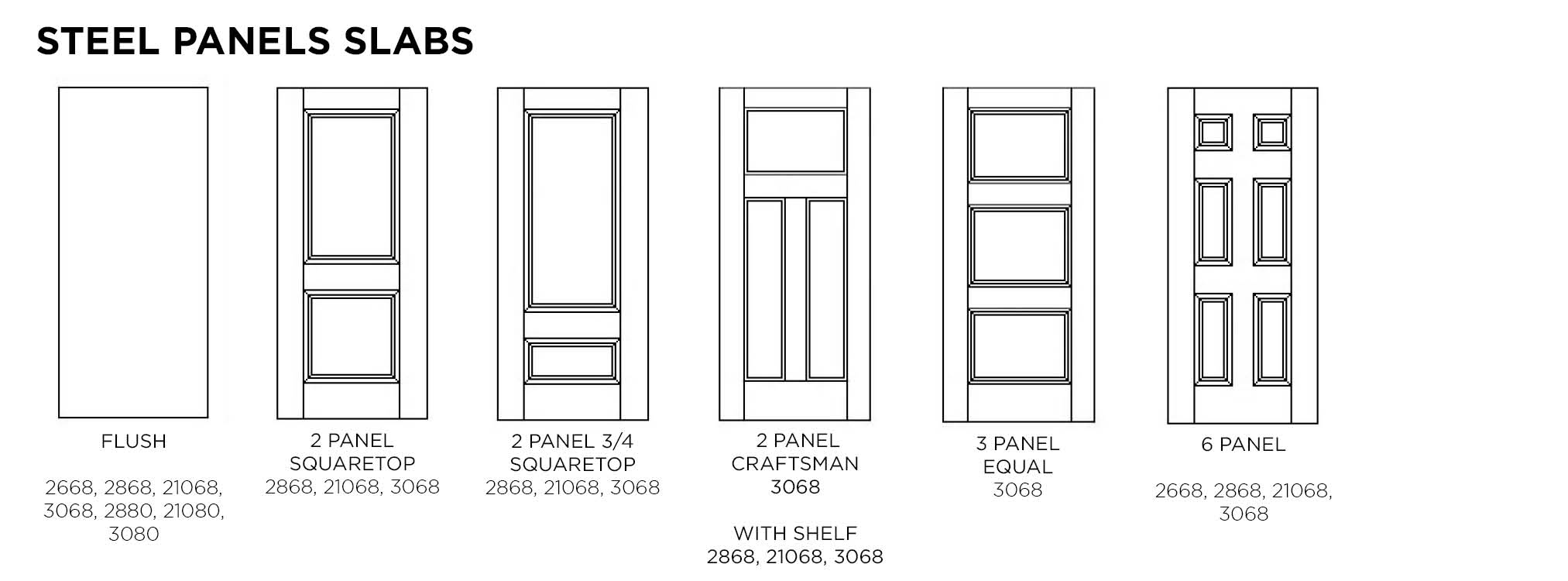

Steel-Panel-Availability

Smooth-Fiberglass-AvailabilityTextured-Fiberglass-Availability

Sidelite Options

Sidelite-Availability

Glass Options

LOW E OPTIONS

low e options

HARD COAT LOW E (3) | CLEAR - CLLE

This is a durable hard-coated low emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.

SOFT COAT LOW E (2) | CLEAR – SBCL

The soft-coated Low E glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.

HARD COAT LOW E (2) | HARD COAT LOW E (4) - LELE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%.  During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.

SOFT COAT LOW E (2) | HARD COAT LOW E (4) - SBLE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.


GLASS SPACER OPTIONS

WARM EDGE TECHNOLOGY

Golden Windows uses only Warm Edge Technology (W.E.T) spacers in their windows. Warm Edge Technology is a generic term for any spacer bar or system that has better thermal performance than a highly conductive aluminum spacer bar.

The two W.E.T spacers that Golden Windows uses are the tin Intercept® spacer and the Edgetech Superspacer®.


INTERCEPT®

The Intercept® spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit..


intercept


SUPERSPACER®

The Superspacer® helps to deliver windows of the highest standards. Superspacer® is a non-metal structural foam spacer system that holds panes of glass apart in a window.

Superspacer® has excellent resistance to nitrogen and argon gas absorption and it has high UV resistance. It has 100% memory meaning it will return to its original shape allowing for expansion and contraction, which is a major cause of stress fractures in conventional sealed units.


superspacer

Grille Options

Grille-Patterns

Decorative Glass Options

We source our decorative glass from Trimlite.

Please see their website or brochure for options.

Trimlite brochure  Trimlite Doorlites

Hardware Options

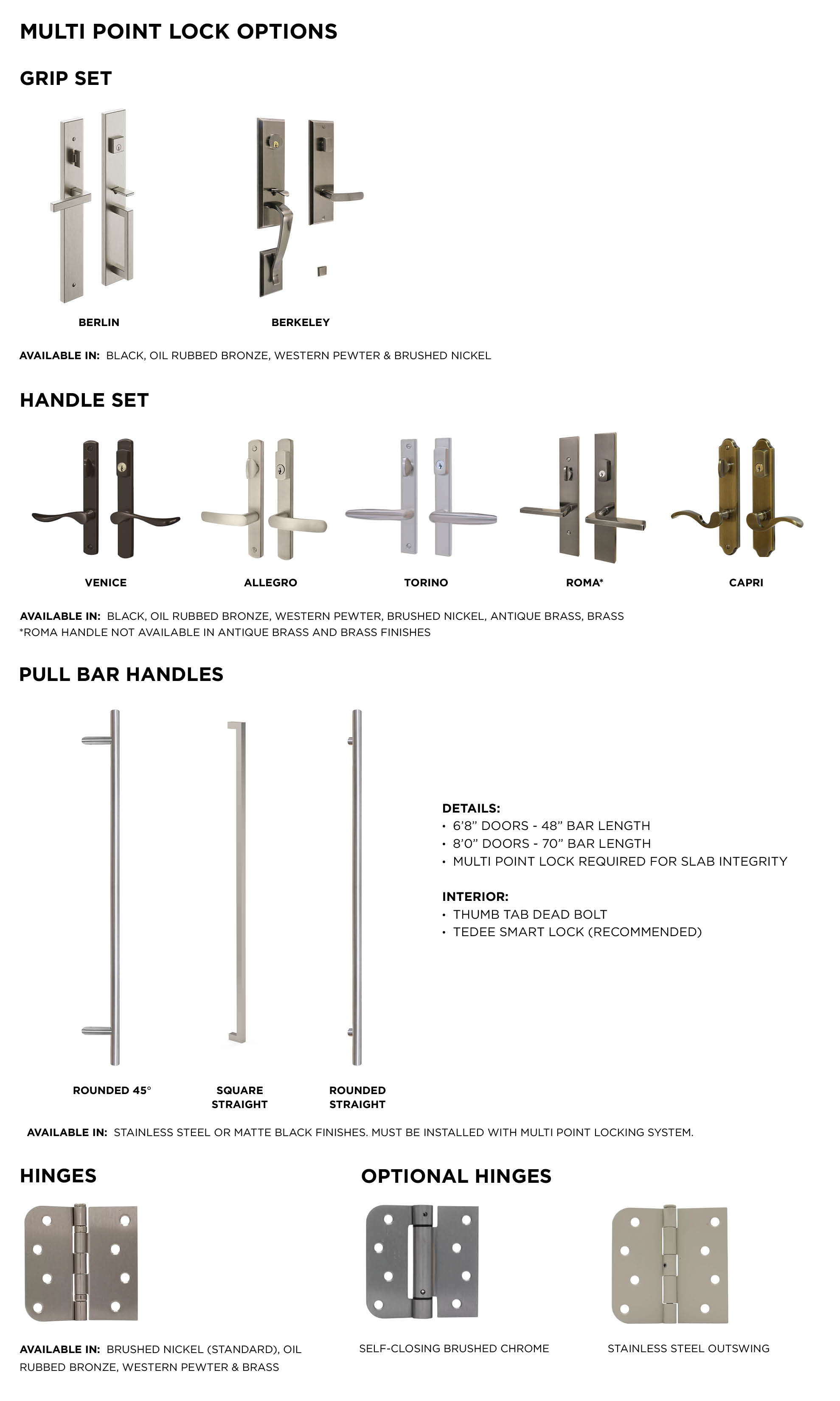

OPTIONAL MULTI POINT LOCKS


Trimlite brochure  Multi Point Door Lock Options



GRIP SET

Berkely                               Berkeley

   Salem Grip Set                         Berkeley Grip Set


Available In: Black, Oil Rubbed Bronze, Western Pewter and Brushed Nickel Finishes


HANDLE SET


Capri

Capri

Allergo

Allergo

Venice

Venice

Torinol

Torino


Available In: Black, Oil Rubbed Bronze, Western Pewter and Brushed Nickel, Antique Brass, Brass Finishes


HINGES

Brushed Nickel-Standard

Brushed Nickel-Standard

Brass

Brass

Bright Chrome

Bright Chrome

Oil Rubbed Bronze

Oil Rubbed Bronze

Western Pewter

Western Pewter


OPTIONAL HINGES

Self-Closing Brushed Chrome

Self-Closing Brushed Chrome

Stainless Steel Outswing

Stainless Steel Outswing

Optional Accessories

Exterior Brickmould

1 1/2" Standard Brickmould1 1/2" Standard Brickmould

Sizes & Shapes

Performance

Golden Windows products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-11, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian
Supplement to AAMA/WDMA/CSA101/I.S.2/A440, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2019 Ontario Building Code.
Clad/Wood Entry Door
Class LC-PG35: Size tested 2849 x 2478 mm (112.2 x 97.6)-Type SHD
Positive Design Pressure = 1680 Pa (35 psf)
Negative Design Pressure = -1680 Pa (-35 psf)
Water Penetration Resistance Test Pressure = 260 Pa (5.25 psf)
Canadian Air Infiltration/Exfiltration = A3 Level
Appropriate selection of Golden Windows' windows, doors, and accessories which conform to all applicable laws, ordinances, building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor.
All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.

For Professionals

VERTICAL SECTION

Inswing Entry Door System

Inswing Entry Door System

Outswing Entry Door System

Outswing Entry Door System

HORIZONAL SECTION

Inswing Single Entry Door System

Inswing Single Entry Door System

Outswing Single Entry Door System

Outswing Single Entry Door System

Drawings are not to scale.
