The GoldenWood® awning windows are perfect for log or heritage homes. The wood interior and exterior combined with our in-house mill allows you to customize your windows to fit almost any application. An awning window works similarly to a casement window as it operates by cranking a handle that extends the bottom of the sash outwards. The top-hinging feature is a great way to provide ventilation under unpredictable weather conditions.
- Clear Unfinished Pine interior
- 4 different Low E glazing options, all include Argon gas
- 3 standard and 2 optional hardware finishes to choose from
- Multiple grille options including grilles between the glass, removable wood grilles and simulated divided lights (SDL)
- Choose from Colonial, Victorian, Muskoka and Custom Grille Patterns
- Exterior Brickmould and sill nosing are standard
- White, Black, Coppertone or wood grain screens available
- Available in Triple Glaze for increased energy efficiency
GoldenWood® awning windows are available in a wide range of standard and custom sizes that will meet most new construction and renovation requirements.
This product is also available in the GoldenClad® and GoldenVinyl® product lines.
GoldenWood® Awning Window
Colour Options
Standard Exterior & Interior Species
PineGlass Options
Low E Options
Clear | Hard Coat Low E (3) - CLLE
This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.
Soft Coat Low E (2) | Clear – SBCL
The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.
Hard Coat Low E (2) | Hard Coat Low E (4) - LELE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.
Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.
Glass Spacer Options
Warm Edge Technology
Intercept®
The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.
Superspacer®
Decorative Glass Options
Obscure
Grille Options
Grille Patterns
Colonial
Muskoka
Victorian
2" Horizontal
Custom
Grilles Between Glass (GBG)
5/16" Narrow Pewter
5/16" Narrow Brass
5/8" Standard Flat
3/4" Georgian
5/8" Standard Flat & 3/4" Georgian available in:
Golden White
Taupe
Golden Sable
Black
Split finish also available in 5/8" Standard Flat & 3/4" Georgian.
Simulated Divided Lite (SDL)
1" Exterior SDL
2" Exterior Mullion
1" Interior SDL
2" Interior Mullion
Wood Removable
1" Removable Profile
Available in:
Pine
Hardware Options
Standard Hardware Finishes
White
Coppertone
Black
Optional Hardware Finishes
Oil Rubbed Bronze
Brushed Nickel
Optional Accessories
Brickmould
Screens
Available in White, Black, Coppertone and Wood grain.
Sizes & Shapes
GoldenWood Awning Sizing
Note:
Any Awning window with a width greater than 1200mm (47 1/4") can not have another window mulled on top of it.
Any Awning window with a height greater than 800mm (31 1/2") may experience chatter upon closing the sash due to 22" hinge limitations.

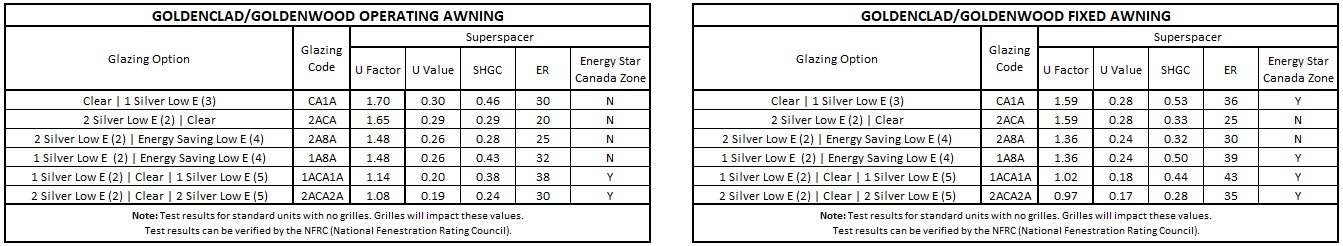

Performance
Golden Window Products are manufactured and pre-assembled to conform to
AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard /
Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian
Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration
Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2012 Ontario Building Code.
Clad/Wood Awning Window (Operating)
Class CW-PG40: Size tested 900 x 1950 mm (35.4 x 76.8)-Type C
Positive Design Pressure = 2130 Pa (44 psf)
Negative Design Pressure = -2130 Pa (-44 psf)
Water Penetration Resistance Test Pressure = 400 Pa (8 psf)
Canadian Air Infiltration/Exfiltration = A3 Level
Clad/Wood Awning Window (Fixed)
Class CW-PG35: Size tested 2000 x 2000 mm (78.7 x 78.7)-Type FW
Positive Design Pressure = 1760 Pa (37 psf)
Negative Design Pressure = -1760 Pa (-37 psf)
Water Penetration Resistance Test Pressure = 730 Pa (15 psf)
Canadian Air Infiltration/Exfiltration = Fixed Level
Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances, building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.
For Professionals
Vertical Section
Horizontal Section
Drawings are not to scale.
