GoldenWood® Double Hung Window

The GoldenWood® Double Hung windows are perfect for log or heritage homes. The wood interior and exterior combined with our in-house mill allows you to customize your windows to fit almost any application. Multiple layers of weather stripping and a sloped sill aid in water control and energy efficiency. The top and bottom sash both operate and pivot towards the interior for easy cleaning and maintenance. This product features constant force balances that are concealed in a stationary jamb liner, a cam action lock with a security release button and thumb release latches for effortless tilting and removal of the sash.

Clear Unfinished Pine interior
4 different Low E glazing options, all include Argon gas
3 standard and 2 optional hardware finishes to choose from
Multiple grille options including grilles between the glass, removable wood grilles and simulated divided lights (SDL)
Choose from Colonial, Victorian, Muskoka and Custom Grille Patterns
Exterior Brickmould and sill nosing are standard

GoldenWood Double Hung windows are available in a wide range of standard and custom sizes that will meet most new construction and renovation requirements.

This product is also available in the GoldenClad® and GoldenVinyl® product lines.

Colour Options

Standard Exterior & Interior Species

Pine

Glass Options

Low E Options

Clear | Hard Coat Low E (3) - CLLE

This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.

Soft Coat Low E (2) | Clear – SBCL

The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.

Hard Coat Low E (2) | Hard Coat Low E (4) - LELE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.

Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE

The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.

Glass Spacer Options

Warm Edge Technology

Golden Windows uses only Warm Edge Technology (W.E.T) spacers in their windows. Warm Edge Technology is a generic term for any spacer bar or system that has better thermal performance than a highly conductive aluminum spacer bar. The two W.E.T spacers that Golden Windows uses are the tin Intercept spacer and the Edgetech Superspacer.

Intercept®

The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.

Superspacer®

The Superspacer helps to deliver windows of the highest standards. Superspacer is a non-metal structural foam spacer system that holds panes of glass apart in a window. Superspacer has excellent resistance to nitrogen and argon gas absorption and it has high UV resistance. It has 100% memory meaning it will return to its original shape allowing for expansion and contraction, which is a major cause of stress fractures in conventional sealed units.

Decorative Glass Options

Obscure

Grille Options

Grille Patterns

Colonial

Muskoka

Victorian

Custom

Grilles Between Glass (GBG)

5/16" Narrow Pewter

5/16" Narrow Brass

5/8" Standard Flat

3/4" Georgian

5/8" Standard Flat & 3/4" Georgian available in:

Golden White

Taupe

Golden Sable

Black

Split finish also available in 5/8" Standard Flat & 3/4" Georgian.

Simulated Divided Lite (SDL)

1" Exterior SDL

1" Interior SDL

Wood Removable

1" Removable Profile

Available in:

Pine

Hardware Options

Sash Locks

Standard Finishes


White	Black

Optional Finishes


Oil Rubbed Bronze	Brushed Nickel	Antique Brass

Optional Sash Lifts


White	Black	Oil Rubber Bronze	Brushed Nickel

Optional Accessories

Exterior Brick Mould

2" Standard Brick Mould

Sizes & Shapes

GoldenWood Double Hung Window Standard Elevation

Egress Notes:

Ec = Window meets the 2006 Ontario Building Code where each such window shall provide an individual, unobstructed open portion having a minimum area of 3.85ft² (0.35m²) with no dimensions less that 380mm (15”).

E1 = Window has an individual, unobstructed open portion of no less than 20” (508mm) in width, 24” (610mm) in height and a minimum area of 5.0ft² (0.46m²).

E2 = Window has an individual, unobstructed open portion of no less than 20” (508mm) in width, 24” (610mm) in height and a minimum area of 5.7ft² (0.53m²).

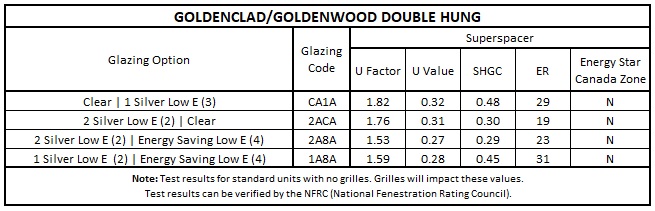

Performance

Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2012 Ontario Building Code.

Clad/Wood Double Hung Window
Class LC-PG35: Size tested 1159 x 2360 mm (45.6 x 92.9)-Type H
Positive Design Pressure = 1710 Pa (36 psf)
Negative Design Pressure = -1710 Pa (-36 psf)
Water Penetration Resistance Test Pressure = 400 Pa (8 psf)
Canadian Air Infiltration/Exfiltration = A3 Level

Clad/Wood Double Hung Fixed Picture Window
Class CW-PG35: Size tested 2000 x 2360 mm (78.7 x 92.9)-Type FW
Positive Design Pressure = 3930 Pa (82 psf)
Negative Design Pressure = -3930 Pa (-82 psf)
Water Penetration Resistance Test Pressure = 730 Pa (15 psf)
Canadian Air Infiltration/Exfiltration = Fixed Level

Clad/Wood Double Hung Transom Window
Class CW-PG35: Size tested 2318 x 2000 mm (91.3 x 78.7)-Type FW
Positive Design Pressure = 3970 Pa (83 psf)
Negative Design Pressure = -3970 Pa (-83 psf)
Water Penetration Resistance Test Pressure = 730 Pa (15 psf)
Canadian Air Infiltration/Exfiltration = Fixed Level

Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances, building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.

For Professionals

Vertical Section

Horizontal Section

Drawings are not to scale.
