The GoldenClad® Terrace Doors allow for the enjoyment of a beautiful wood interior which is designed with an extruded aluminum clad exterior frame allowing for a choice of exterior colours.
GoldenClad® Terrace Doors
Colour Options
Available Exterior Colours
Golden White
Taupe
Sable
Black
Optional Exterior Colours
Cranberry
Green
Eagle Tavern Green
Cashmere
Wicker
Tile Red
Burgundy
Sandalwood
Clay
Buff
Old World Blue
Wedgewood
Ivy Green
Backwood
Leaf Green
Amazon Green
Forest Green
Grey
White
Universal Brown
Bronze
Almond
Dove Grey
Iron Ore
Pearl Grey
Commercial Brown
Slate
Cream
Custom Colours are also available.
Individual computer and monitor settings may prevent the exact matches of colour finish. Please contact Golden Windows for exact colour and finish samples.
Glass Options
Low E Options
Clear | Hard Coat Low E (3) - CLLE
This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.
Soft Coat Low E (2) | Clear – SBCL
The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.
Hard Coat Low E (2) | Hard Coat Low E (4) - LELE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.
Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.
Glass Spacer Options
Warm Edge Technology
Intercept®:
The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.
Superspacer®:
Grille Options
Grille Patterns
Colonial
Muskoka
Victorian
2" Horizontal
Custom
Grilles Between Glass (GBG)
5/16" Narrow Pewter
5/16" Narrow Brass
5/8" Standard Flat
3/4" Georgian
5/8" Standard Flat & 3/4" Georgian available in:
Golden White
Taupe
Golden Sable
Almond
Green
Split finish also available in 5/8" Standard Flat & 3/4" Georgian.
Simulated Divided Lite (SDL)
1" Exterior SDL
2" Exterior Mullion
1" Interior SDL
2" Interior Mullion
Wood Removable
1" Removable Profile
Available in:
Pine
Hardware Options

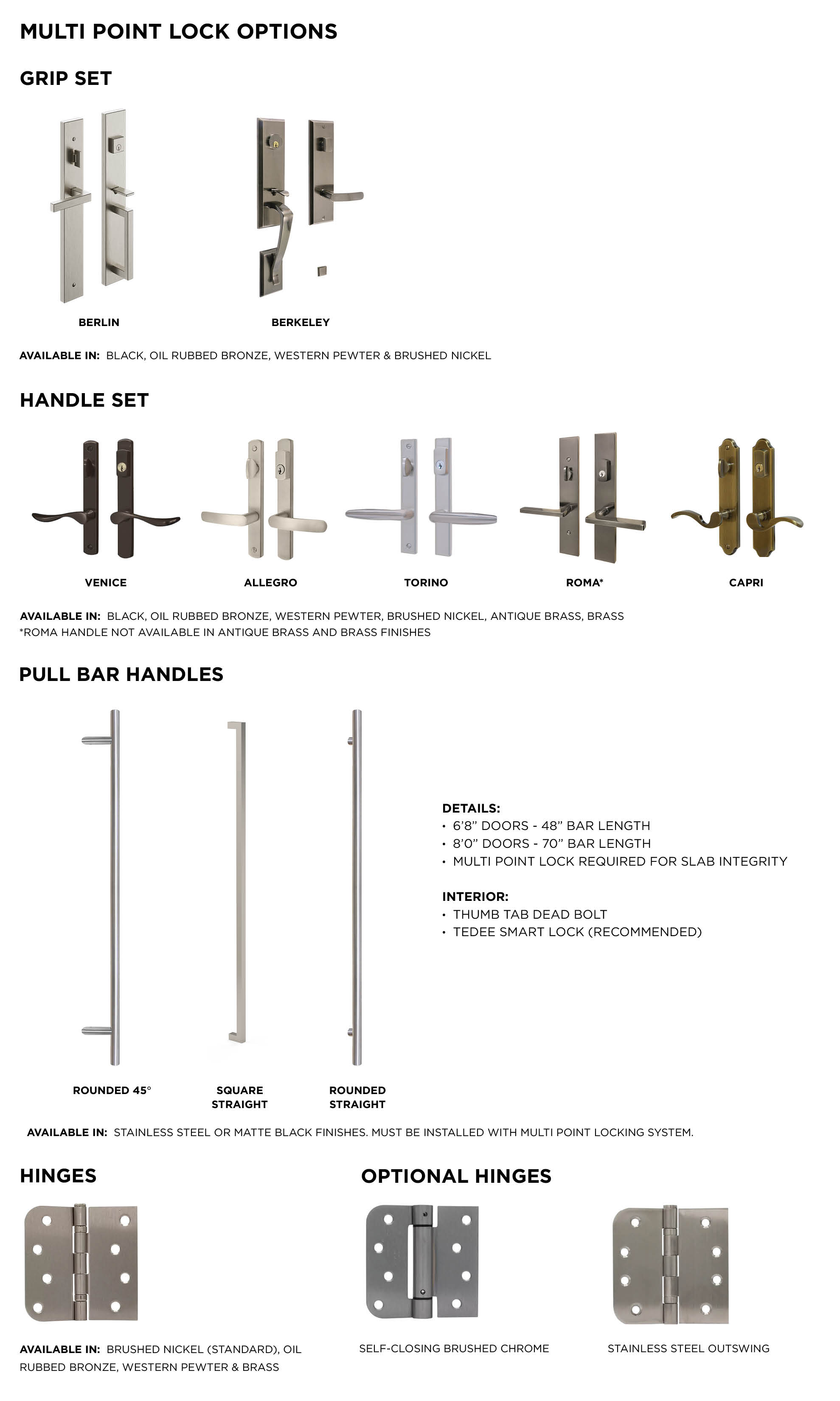

Optional Multi-point Lock Handle
Brass
Antique Brass
Bright Chrome
Brushed Nickel
Oil Rubbed Bronze
Western Pewter
Hinges
Brushed Nickel-Standard
Brass
Bright Chrome
Oil Rubbed Bronze
Western Pewter
Optional
Self-Closing Brushed Chrome
Stainless Steel Outswing
Optional Accessories
Exterior Brick Mould
1 1/2" Standard Brick Mould
Sizes & Shapes
Double And Triple Wide Size Grid
Performance
Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-08, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian
Supplement to AAMA/WDMA/CSA101/I.S.2/A440-08, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2012 Ontario Building Code.
Clad/Wood Entry Door
Class LC-PG35: Size tested 2849 x 2478 mm (112.2 x 97.6)-Type SHD
Positive Design Pressure = 1680 Pa (35 psf)
Negative Design Pressure = -1680 Pa (-35 psf)
Water Penetration Resistance Test Pressure = 260 Pa (5.25 psf)
Canadian Air Infiltration/Exfiltration = A3 Level
Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances,
building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.
For Professionals
Vertical Section
Terrace Door Fixed Panel
Terrace Door Operating Panel
Horizontal Section
Double Wide Terrace Door System
Triple Wide Terrace Door System
Drawings are not to scale.
