    GoldenVinyl® 1000 Series Double Hung Window

  • GoldenVinyl® 1000 Series offers a maintenance-free contemporary profile and a wide selection of colours. A double hung window features double wrap foam compression weatherstripping at all critical points for year-round comfort and a traditional sloped sill to divert water to the exterior. The also allow both sashes to operate and have the added feature of allowing the sash to pivot towards the interior for easy cleaning and maintenance.

    • Select from 4 standard colours: white, black, sable, taupe
    • 30 Optional and custom colours available
    • Available in dual and triple glaze
    • Multiple grille options including grilles between the glass and simulated divided lights (SDL)
    • Brickmould: closed option available and easier cut off fin
    • Increased jamb depth to 4 5/8” frame
    • Pre-primed jamb extension
    • Hidden steel reinforcement for larger sized windows
    • Standard hardware or upgrade to the Encore™ hardware system
    • Easy to install screens
    • Increased energy performance
    • Greater acoustic insulation for some types of traffic noise

    GoldenVinyl® 1000 Series double hung windows are available in a wide range of standard and custom sizes that will meet most new construction and renovation requirements.

    This product is also available in the GoldenClad® and GoldenWood® product lines.

Colour Options

Availble Exterior Colours

Golden White

Golden White

Taupe

Taupe

golden sable

Golden Sable

black

Black

Optional Exterior Colours

cranberry

Cranberry

green

Green

Tavern Green

Eagle Tavern Green

Cashmere

Cashmere

Wicker

Wicker

tile red

Tile Red

burgundy

Burgundy

sandalwood

Sandalwood

clay

Clay

buff

Buff

Old World Blue

Old World Blue

Wedgewood

Wedgewood

Ivy Green

Ivy Green

backwood

Backwood

leaf green

Leaf Green

amazon green

Amazon Green

forest green

Forest Green

grey

Grey

sable

Sable

white

White

Plum Black

Plum Black

universal brown

Universal Brown

Bronze

Bronze

Almond

Almond

Dove Grey

Dove Grey

Iron Ore

Iron Ore

Pearl Grey

Pearl Grey

Commercial Brown

Commercial Brown

Slate

Slate

Cream

Cream

Custom Colours are also available.

Individual computer and monitor settings may prevent the exact matches of colour finish. Please contact Golden Windows for exact colour and finish samples.

Glass Options

Low E Options

low E

Clear | Hard Coat Low E (3) - CLLE

This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.

Soft Coat Low E (2) | Clear – SBCL

The soft-coated Low E glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.

Hard Coat Low E (2) | Clear | Hard Coat Low E (5) - LECLLE

The additional 5th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 50-60%.  During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 5 will reflect heat back into the room.

Soft Coat Low E (2) | Clear | Soft Coat Low E (5) - SBCLSB

The additional 5th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 50-60%.  During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 5 will reflect heat back into the room during cold conditions.


Glass Spacer Options

Warm Edge Technology

Golden Windows uses only Warm Edge Technology (W.E.T) spacers in their windows.  Warm Edge Technology is a generic term for any spacer bar or system that has better thermal performance than a highly conductive aluminum spacer bar. The two W.E.T spacers that Golden Windows uses are the tin Intercept spacer and the Edgetech Superspacer.

Intercept®

The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.


intercept

Superspacer®

The Superspacer helps to deliver windows of the highest standards. Superspacer is a non-metal structural foam spacer system that holds panes of glass apart in a window.  Superspacer has excellent resistance to nitrogen and argon gas absorption and it has high UV resistance. It has 100% memory meaning it will return to its original shape allowing for expansion and contraction, which is a major cause of stress fractures in conventional sealed units.

superspacer

Decorative Glass Options

obscure

Obscure

Grille Options

Grille Patterns


colonial

Colonial

muskoka

Muskoka

victorian

Victorian

horizontal

2" Horizontal

custom

Custom

Grilles Between Glass (GBG)

narrow pewter

5/16" Narrow Pewter

narrow brass

5/16" Narrow Brass

standard flat

5/8" Standard Flat

georgian

3/4" Georgian


5/8" Standard Flat & 3/4" Georgian available in:

golden white

Golden White

taupe

Taupe

golden sable

Golden Sable

Golden Black

Black

Split finish also available in 5/8" Standard Flat & 3/4" Georgian.


Simulated Divided Lite (SDL)

exterior SDL

1" Exterior SDL

exterior SDL

1" Interior SDL

exterior SDL

2" Exterior SDL

Hardware

Sash Locks

Tilt Latch

sash locks
tilt latch

Optional Accessories

Exterior Brickmould

Brickmould-Options

Performance

Physical Performance

Golden Window Products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-17, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-19, “Canadian Supplement and the applicable requirements of the 2017 Ontario Building Code.

1000 Series Double Hung Window
Class LC-PG30: Size tested 1200 x 1950 mm (47.24 x 76.77)-Type H
Positive Design Pressure = 1440 Pa (30.08 psf)
Negative Design Pressure = -1440 Pa (-30.08 psf)
Water Penetration Resistance Test Pressure = 510 Pa (10.65 psf)
Canadian Air Infiltration/Exfiltration = A3 Level

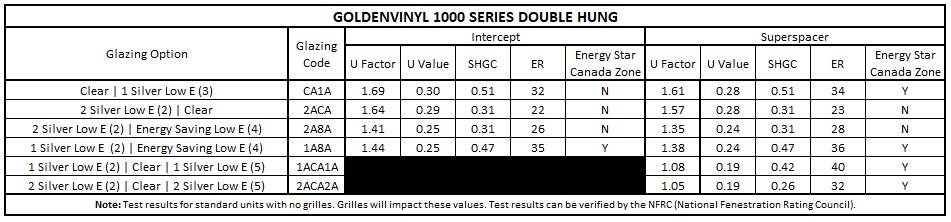

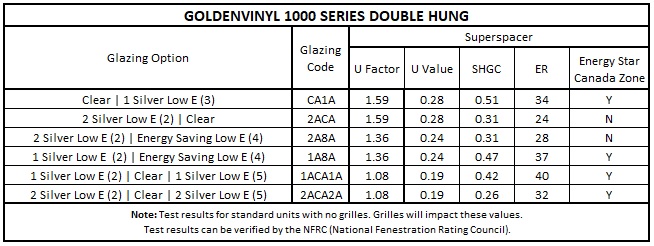

Thermal Performance

  2022-GoldenVinyl-DoubleHung-Performance-Data-August

Appropriate selection of Golden Window’s windows, doors, and accessories which conform to all applicable laws, ordinances,
building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor. All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.
