The GoldenWood® Entry System is manufactured in Kitchener and shipped across Ontario. They are designed with the GoldenGuard® sill that eliminates the need for unsightly door sweeps while incorporating an efficient drainage system. The wood frame with brickmould allows for a choice of various stains to create a personal reflection of your taste and lifestyle. We offer a variety of wood grain embossed fiberglass panel designs to reflect your personal taste, lifestyle and the architectural style of your home. For more information, please see our Trimlite brochure.
GoldenWood® Entry Systems
Colour Options

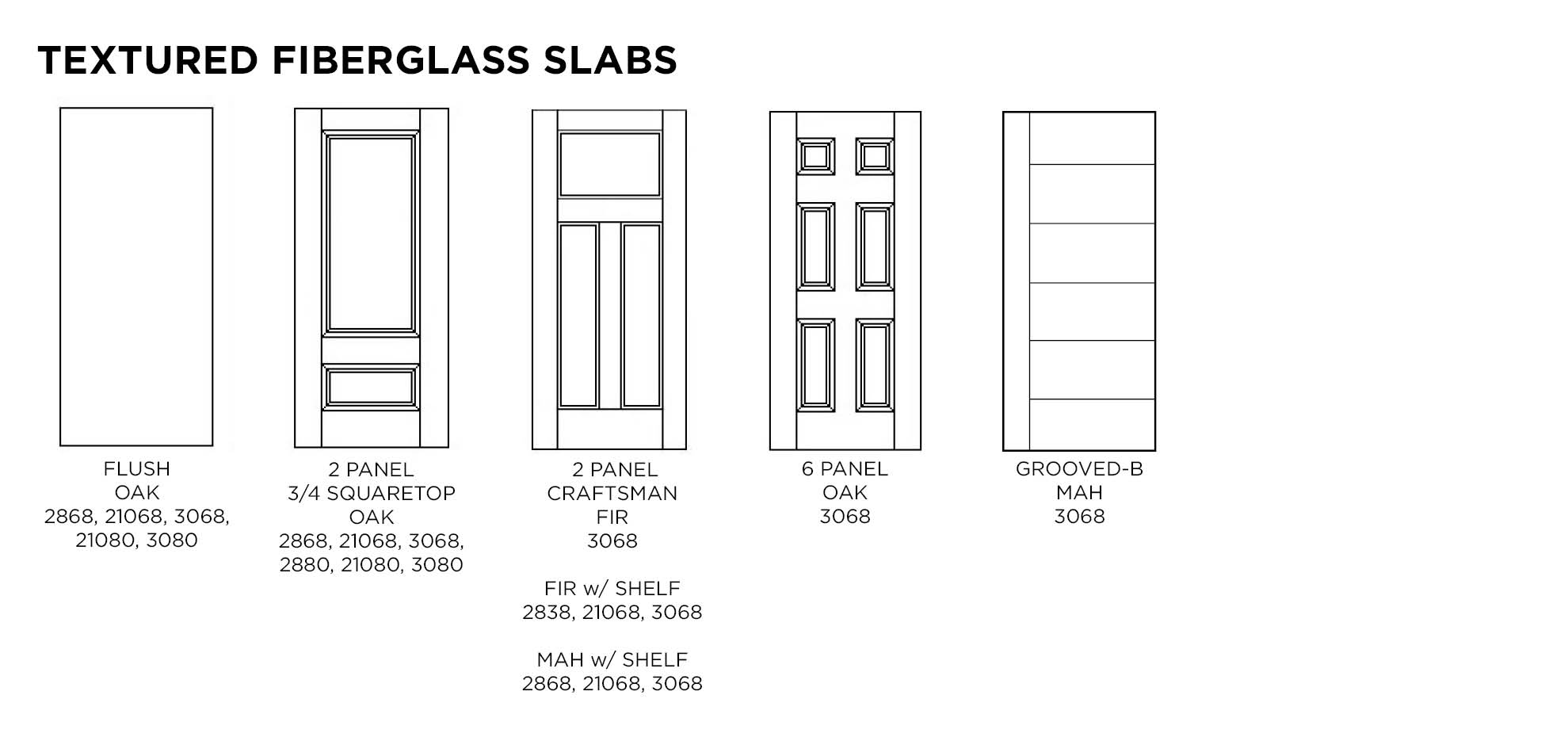

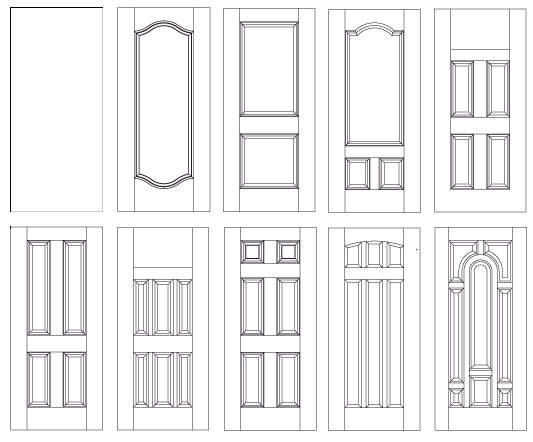

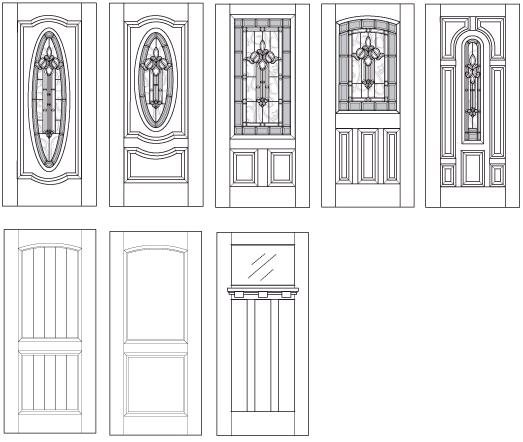

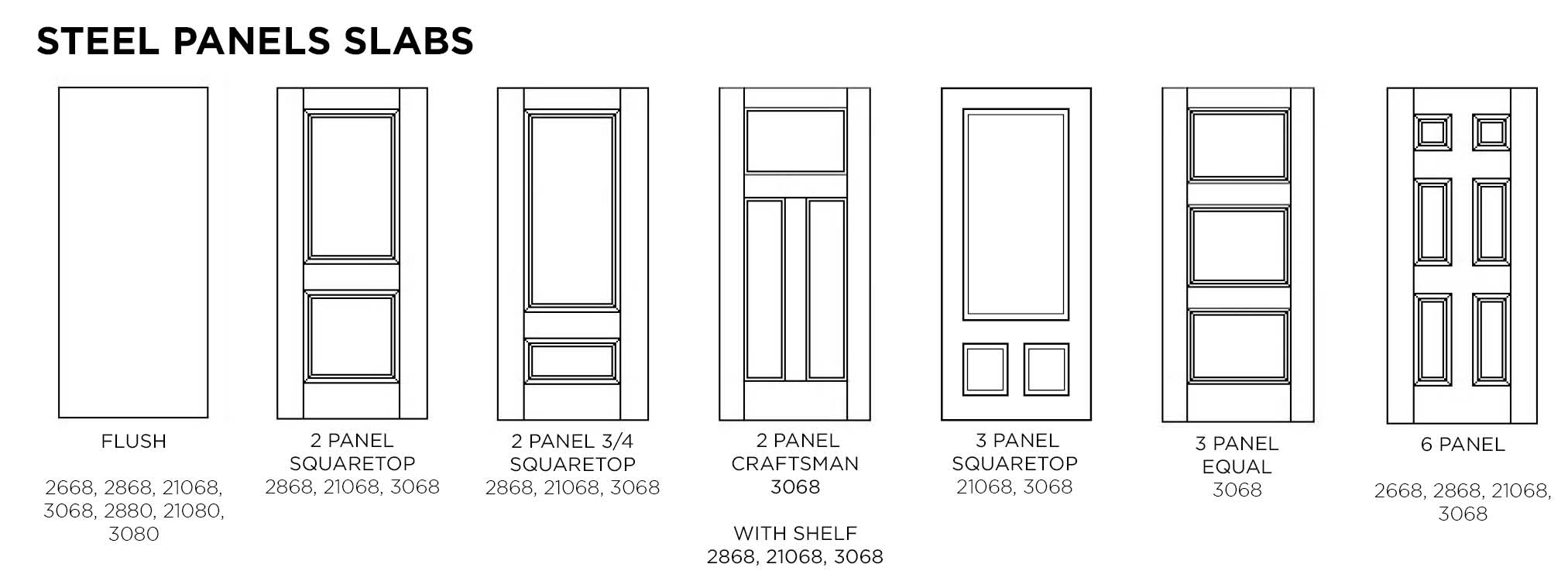

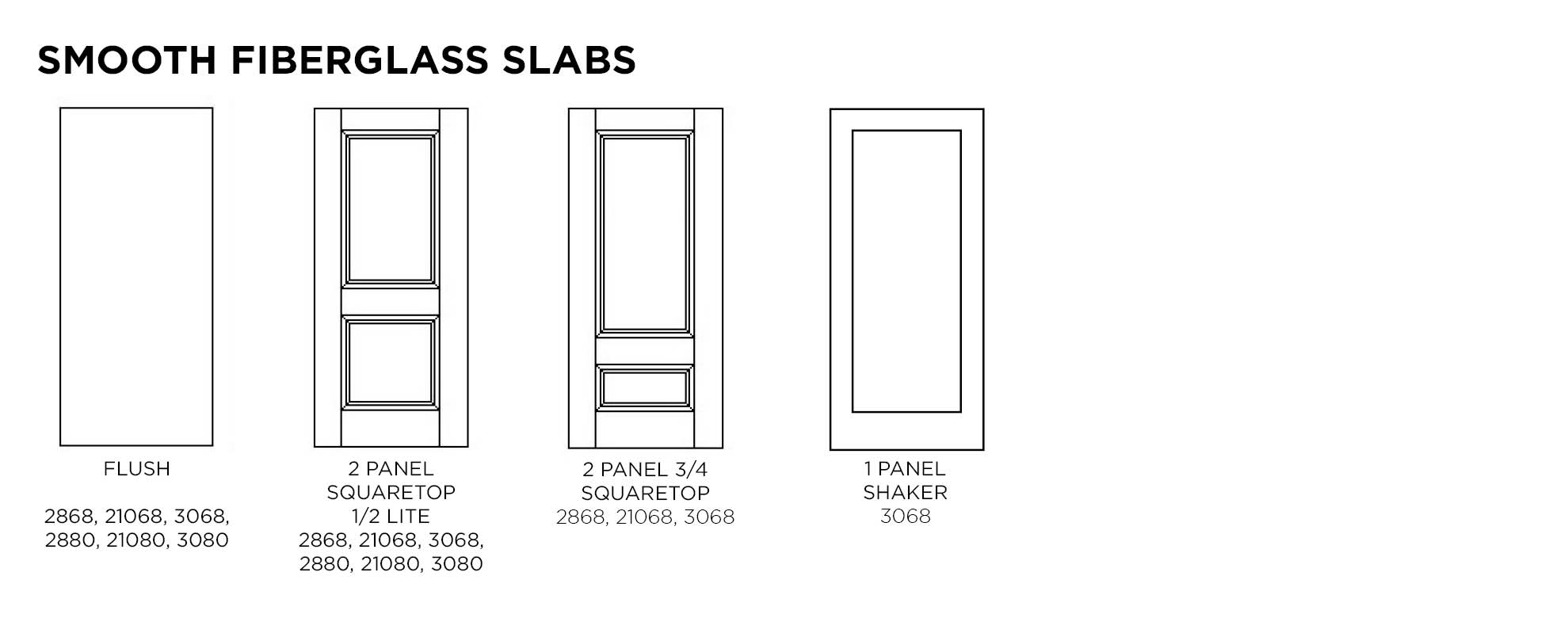

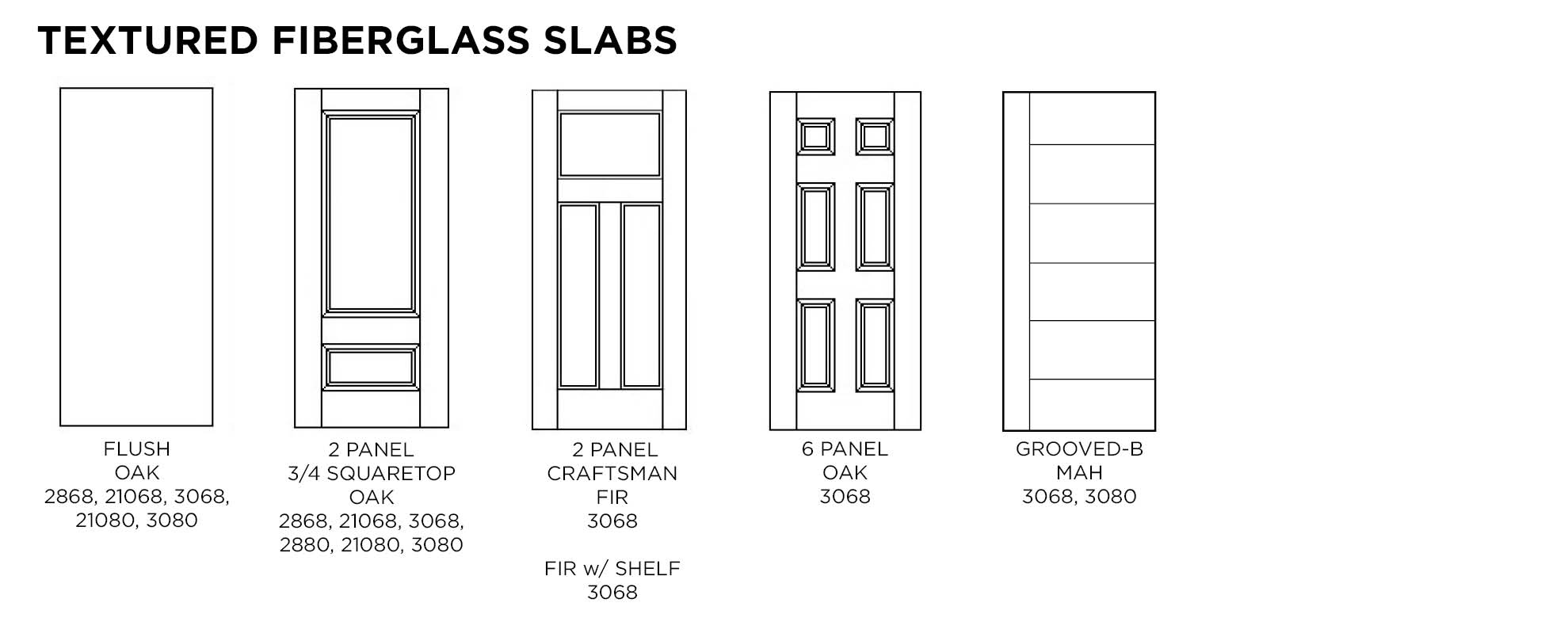

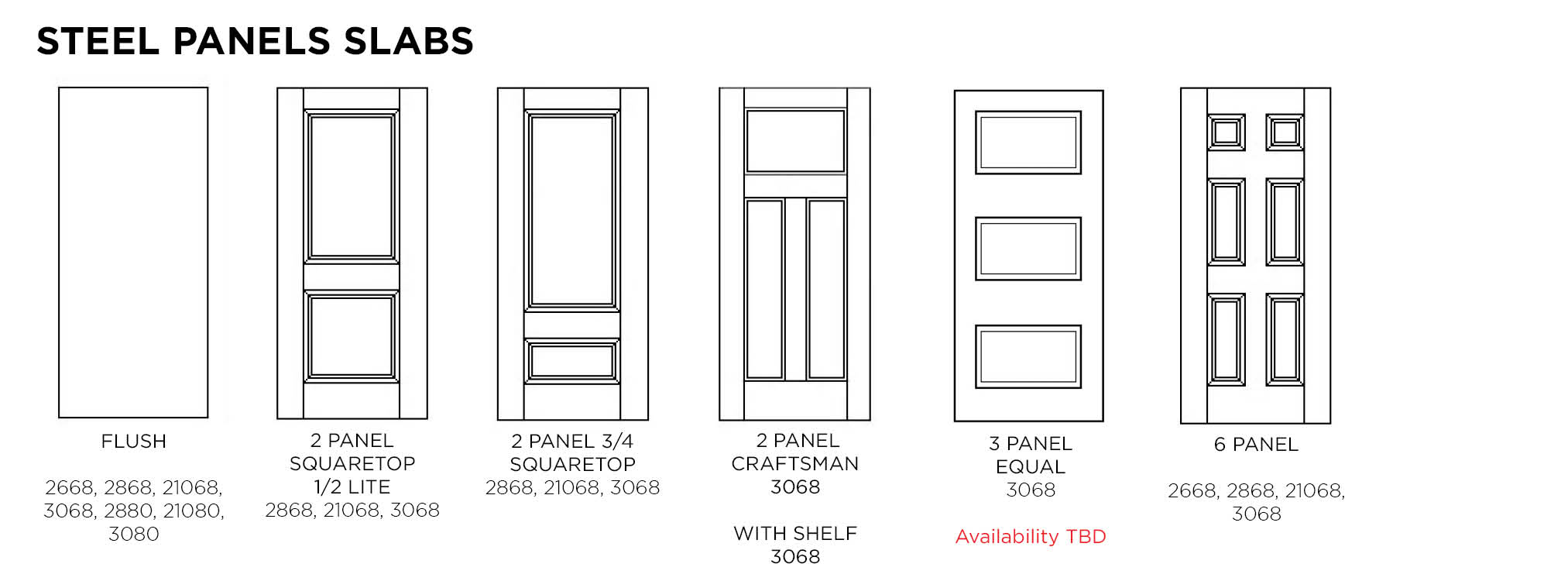

Door Panel Options
.jpg)

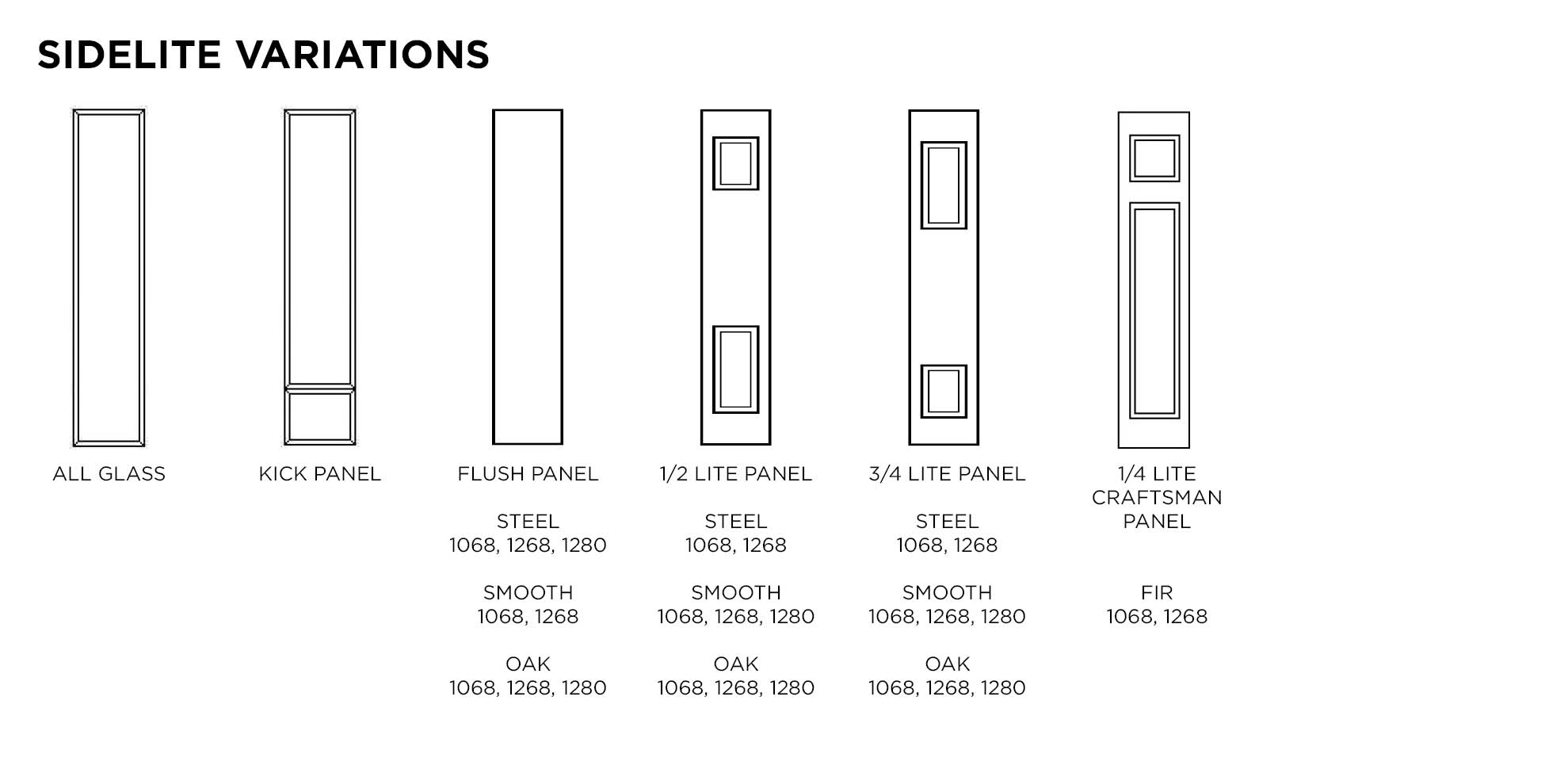

Sidelite Options
Glass Options
Low E Options
Clear | Hard Coat Low E (3) - CLLE
This is a durable hard-coated low-emissivity glass that provides passive solar gain resulting in year-round cost savings. Used on the 3rd surface it maximizes energy efficiency in the colder Northern region climates, where heating is dominant and the greatest energy concern.
Soft Coat Low E (2) | Clear – SBCL
The soft-coated low-e glass provides solar heat control in moderate to warm climates. The neutral appearance and high level of natural light transmitted makes this glass ideal solution for homes where heating and cooling requirements vary throughout the year.
Hard Coat Low E (2) | Hard Coat Low E (4) - LELE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During cold conditions the coating on surface 2 reduces the heat lost from the airspace to the outside and the coating on surface 4 will reflect heat back into the room.
Soft Coat Low E (2) | Hard Coat Low E (4) - SBLE
The addition of a 4th surface Low E technology on insulating glass units allows you to improve the performance of a unit by approximately 15-20%. During warm conditions the coating on surface 2 reflects solar energy outside and the coating on surface 4 will reflect heat back into the room during cold conditions.
Glass Spacer Options
Warm Edge Technology
Intercept®:
The intercept spacer is a tin bar that is coated with butyl and holds panes of glass apart in a window. The butyl is used to keep the bar from touching the glass so its conductive properties are reduced. The butyl is also a vital component in maximizing argon gas retention in the sealed insul glass unit.
Superspacer®:
Grille Options
Decorative Glass Options
We source our decorative glass from Trimlite.
Please see their website or brochure for options.

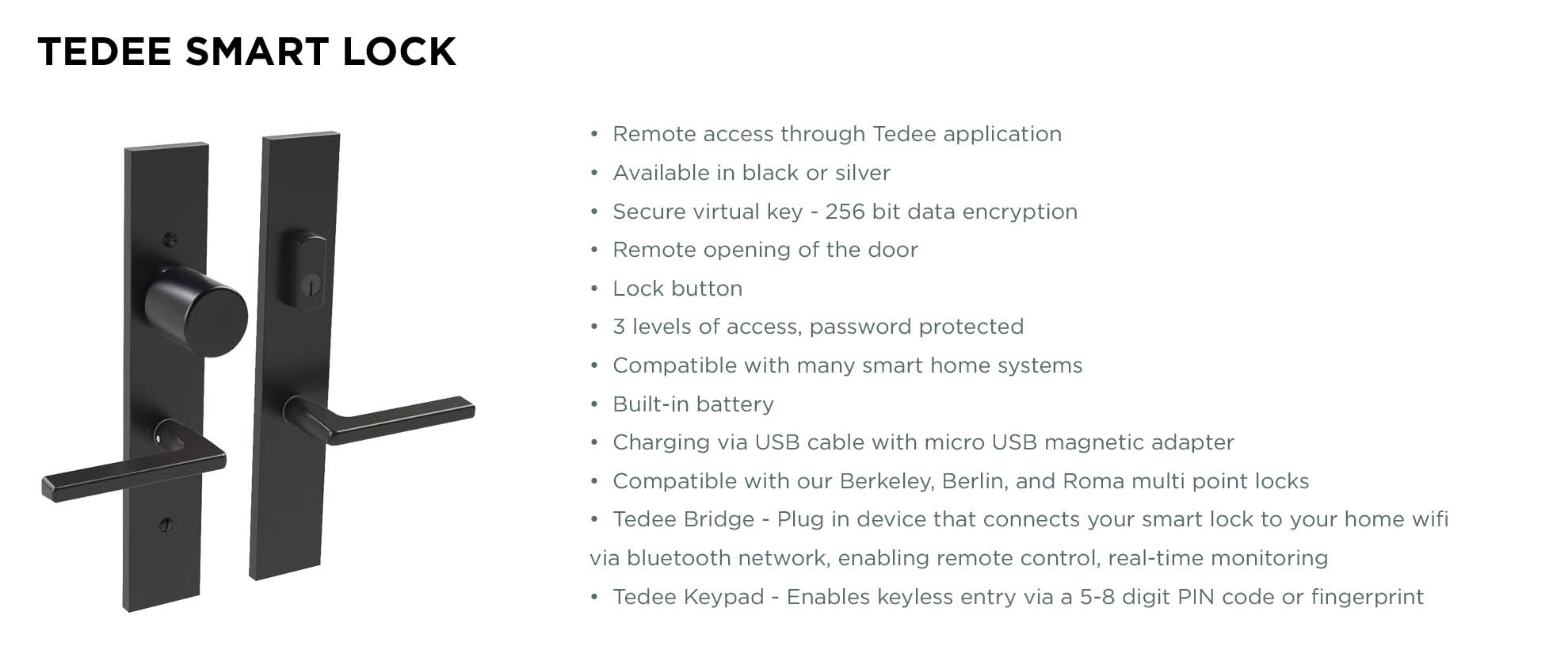

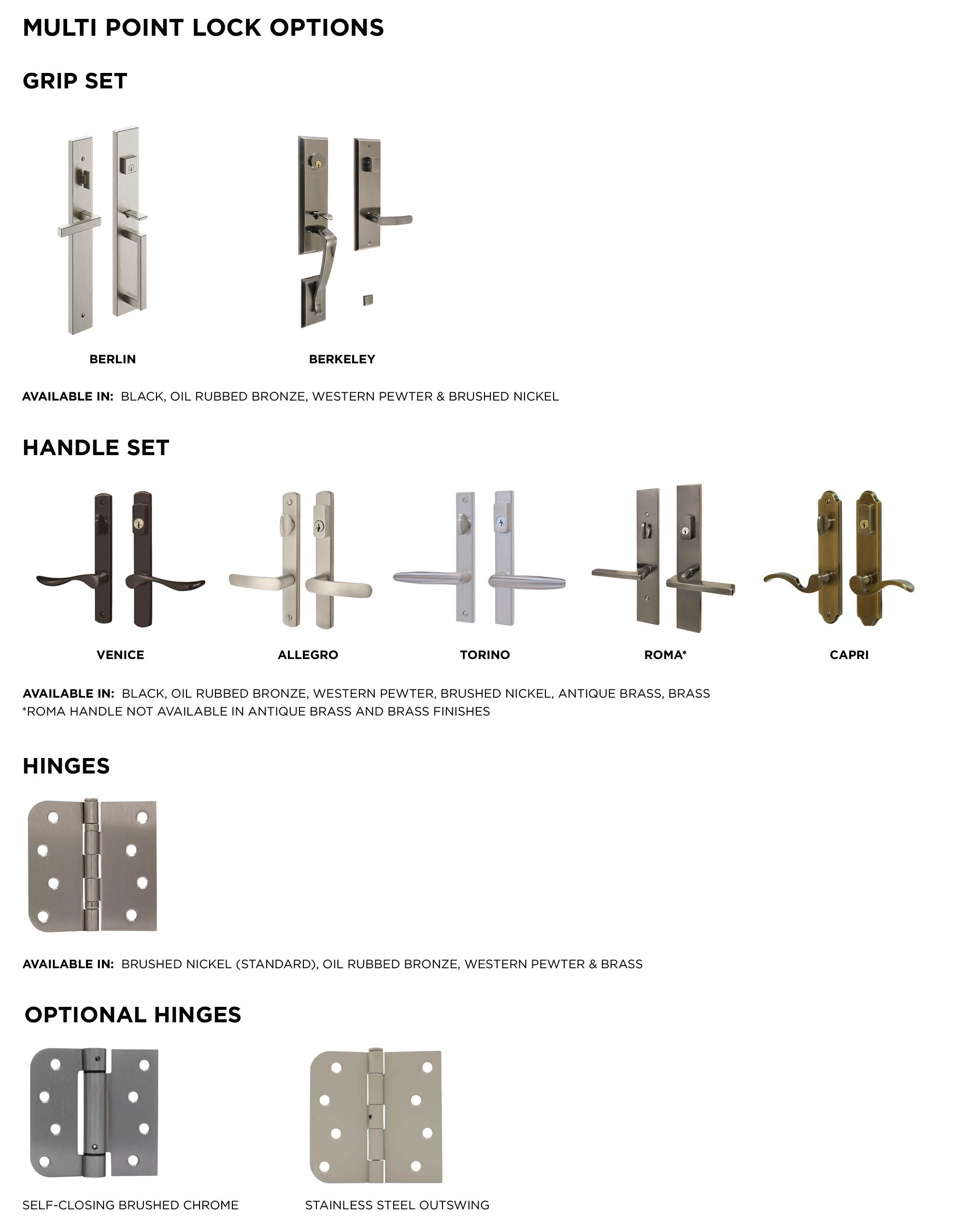

Hardware Options
Optional Accessories
Exterior Brick Mould
2" Standard Brick Mould
Sizes & Shapes
Performance
Golden Windows products are manufactured and pre-assembled to conform to AAMA/WDMA/CSA101/I.S.2/A440-11, “NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and CSA A440S1-09, “Canadian
Supplement to AAMA/WDMA/CSA101/I.S.2/A440, NAFS - North American Fenestration Standard / Specification for Windows, Doors, and Skylights” and the applicable requirements of the 2019 Ontario Building Code.
Clad/Wood Entry Door
Class LC-PG35: Size tested 2849 x 2478 mm (112.2 x 97.6)-Type SHD
Positive Design Pressure = 1680 Pa (35 psf)
Negative Design Pressure = -1680 Pa (-35 psf)
Water Penetration Resistance Test Pressure = 260 Pa (5.25 psf)
Canadian Air Infiltration/Exfiltration = A3 Level
Appropriate selection of Golden Windows' windows, doors, and accessories which conform to all applicable laws, ordinances, building codes and safety requirements is the sole responsibility of the architect, building owner and/or contractor.
All risks related to building design and construction, maintenance, or the installation and use of Golden Windows Limited products shall be assumed by Buyer and/or User.
For Professionals
Vertical Section
Inswing Entry Door System
Horizontal Section
Inswing Single Entry Door System
Inswing Double Entry Door System
Drawings are not to scale.
